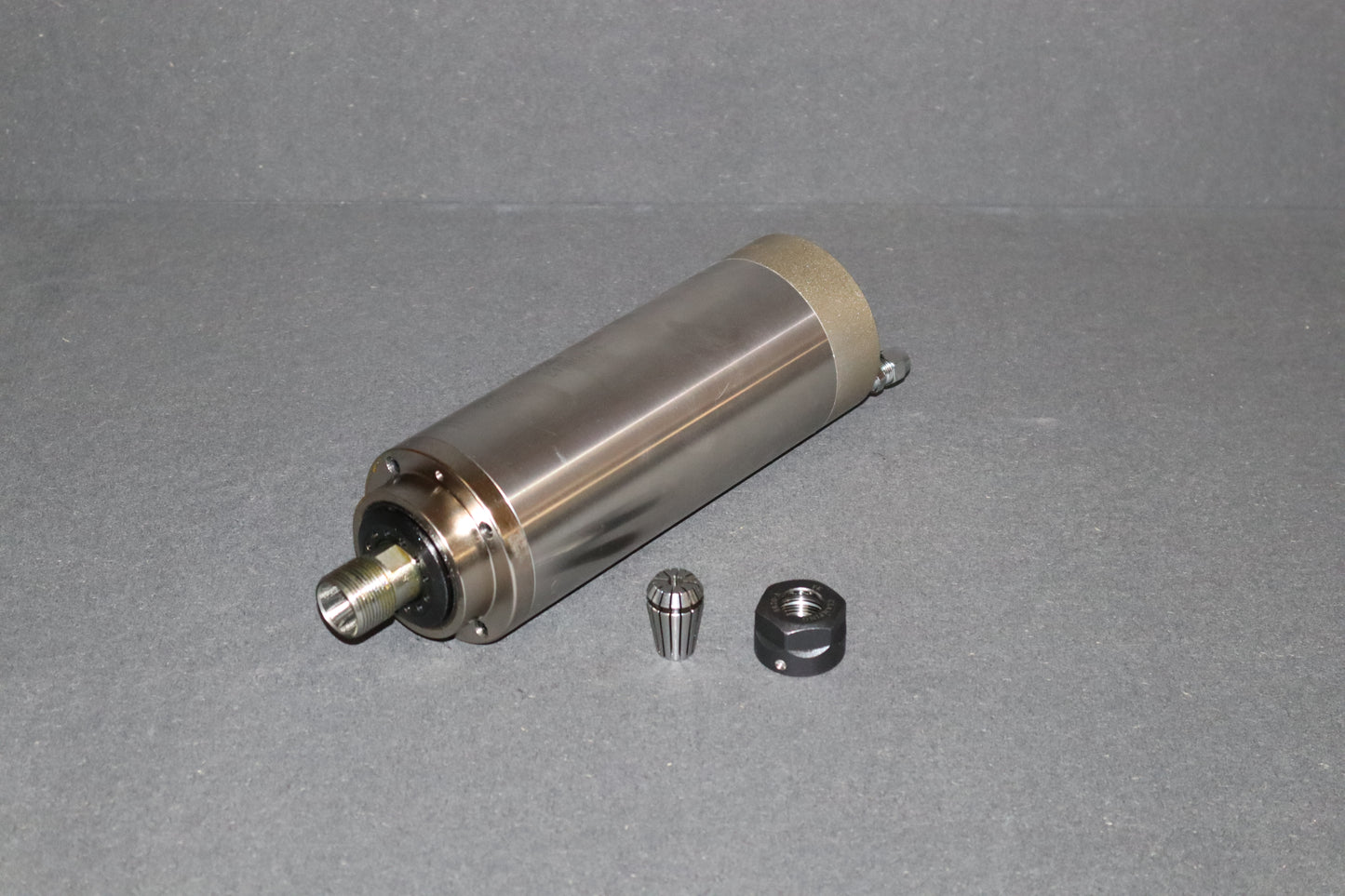

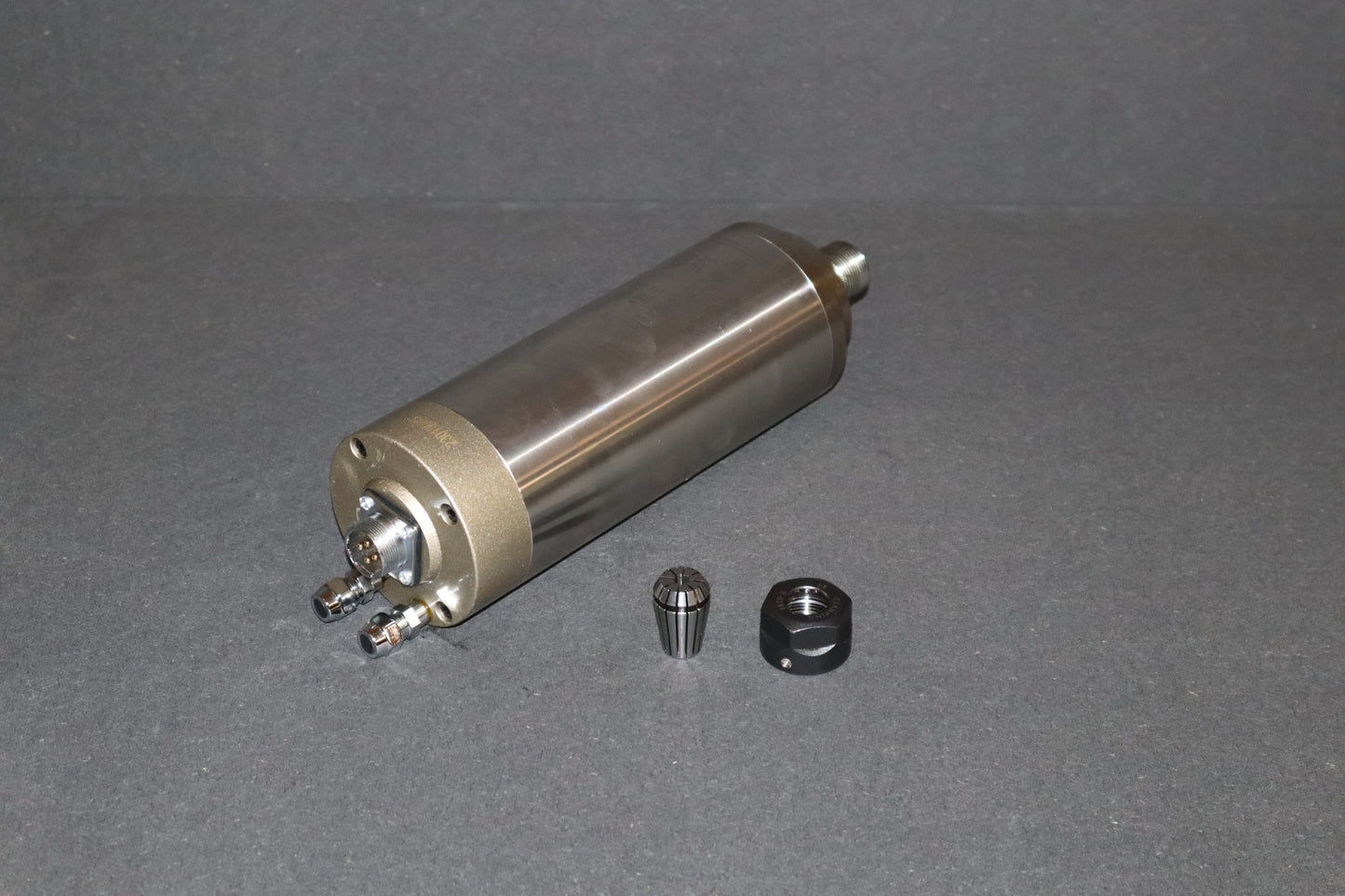

ER20 2.2kw Water Cooled Spindle

ER20 2.2kW water-cooled spindle — a compatible replacement or upgrade part for CNC routers.

Specifications

• Material: Stainless steel
• Size: Φ80x213mm (body diameter 80mm, length 213mm)
• Power: 2.2kW
• Voltage: 220VAC
• Current: 8A
• Frequency: 0–400Hz
• Speed: 10–24,000rpm
• Cooling: Water-cooling
• Accuracy: 0.003–0.005
• Runout: Less than 0.02mm
• Bearing Lubrication: Grease
• Collet Size: ER20
• Bearings: 4 bearings (C7005x2 + C7002x2), P4 class, angular contact bearings
• Net Weight: 5.1kg

Applications

Suitable for wood, aluminium, stone, metal, glass and PVC.
