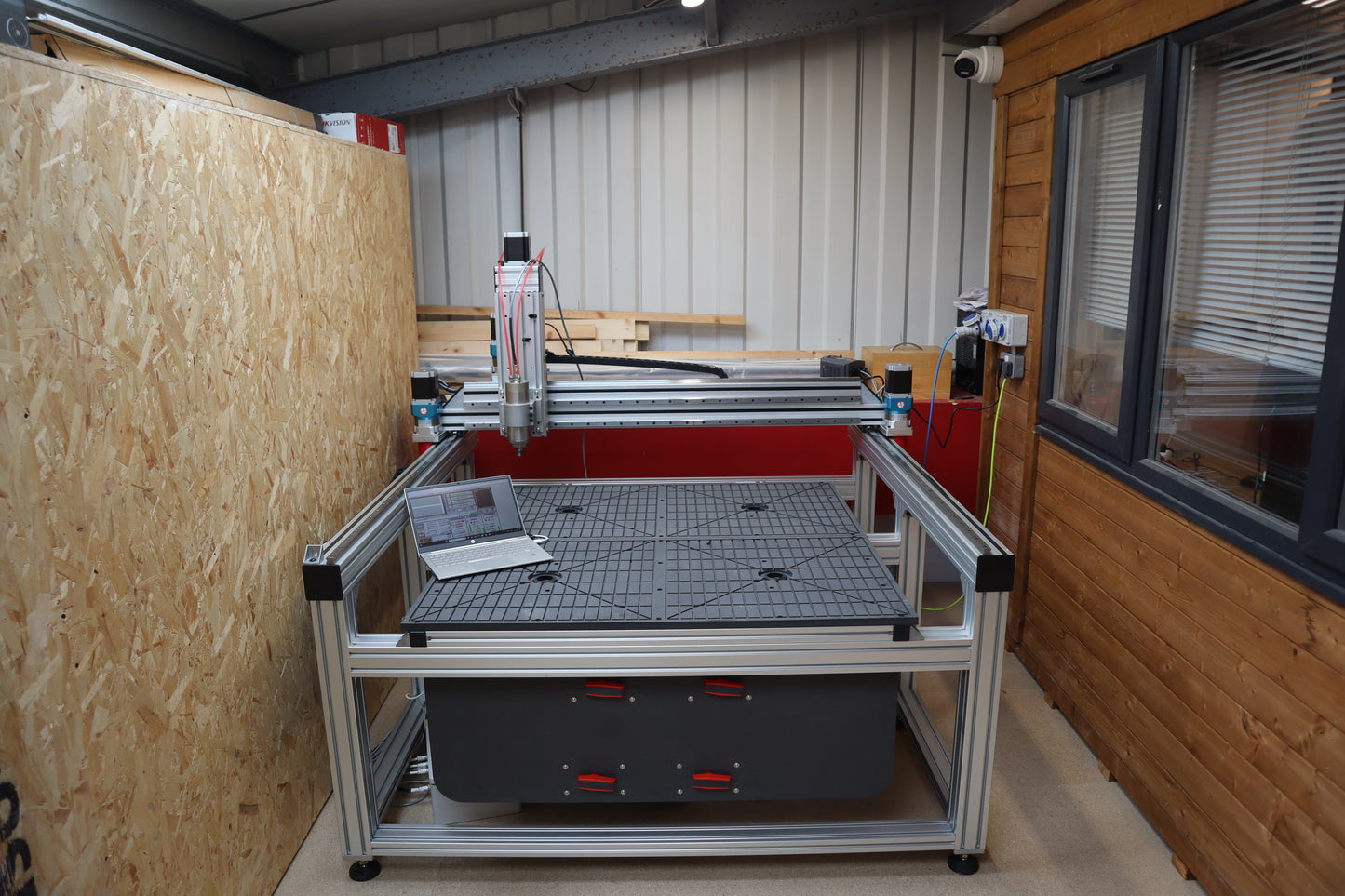

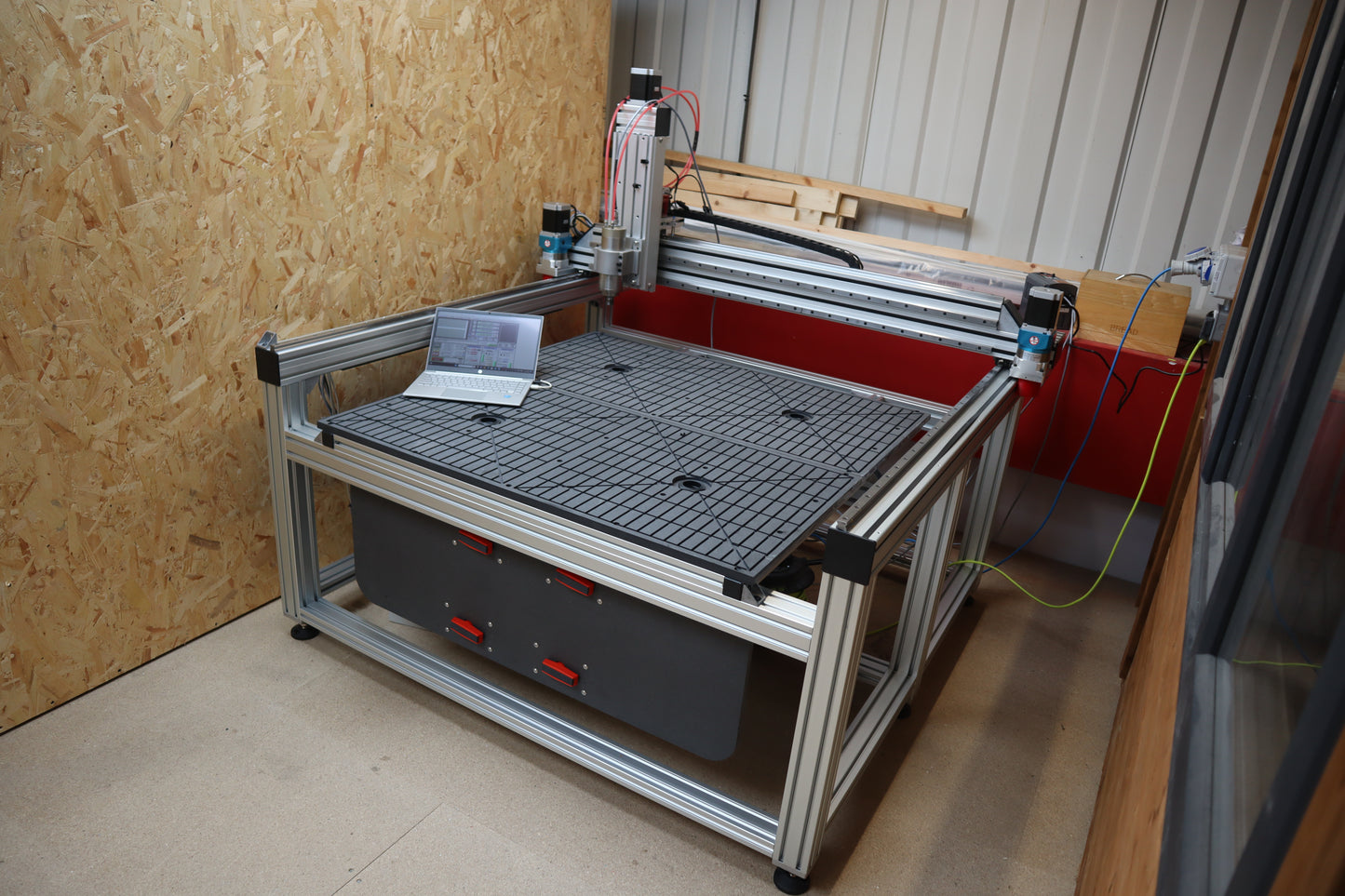

FS44 CNC Router Vacuum Bed.

Compact UK-Built 4x4 CNC Router with Vacuum Bed

The FS44 Vacuum Bed pairs Synergy CNC's compact 4x4 platform with tool-free vacuum hold-down — ideal for smaller workshops running repeat jobs where floor space is at a premium. Designed and built in the UK, it suits sign makers and small cabinet shops that need secure, fast material changeovers without a large footprint.

Key Features

• 2.2kW Water Cooled Spindle — powerful, quiet cutting with a long service life.
• Vacuum Bed Hold-Down — secure material instantly, no clamping required.
• Spindle Collets, Locking Nut & Spanners — everything needed for day-to-day tool changes.
• Dedicated CNC Workstation & Controller — a stable, purpose-built control setup.
• VCarve Design Software & Mach3 CNC Software — industry-standard, easy to pick up.
• Electronic Jogging Handwheel — precise manual control when you need it.
• Sample Cutter Set — start cutting the day it's installed.
• Two-Year Parts Warranty — parts only; does not cover labour or call-out charges.
• Delivery, Installation & Training Included — our engineers set it up and train your team on-site.

Specifications

• Working Area: 1250x1250mm
• Footprint: 1900x1900mm
• Z Stroke: 200mm
• Z Drive: Ball Screw
• X and Y Drive: Rack and Pinion with 4/1 Ratio Planetary Gearbox
• Motors: 8.7Nm NEMA 34

Who the FS44 Vacuum Bed Is Built For

Small sign-making and cabinet workshops running frequent, repeat jobs on smaller panels — where the vacuum bed's fast, secure hold-down saves real time over a full working day, even at a compact bed size.

Delivery & Installation

Built to order with a lead time of approximately 3–4 weeks. We deliver and install on-site ourselves, calibrate the machine, and train your team on the design and control software.
