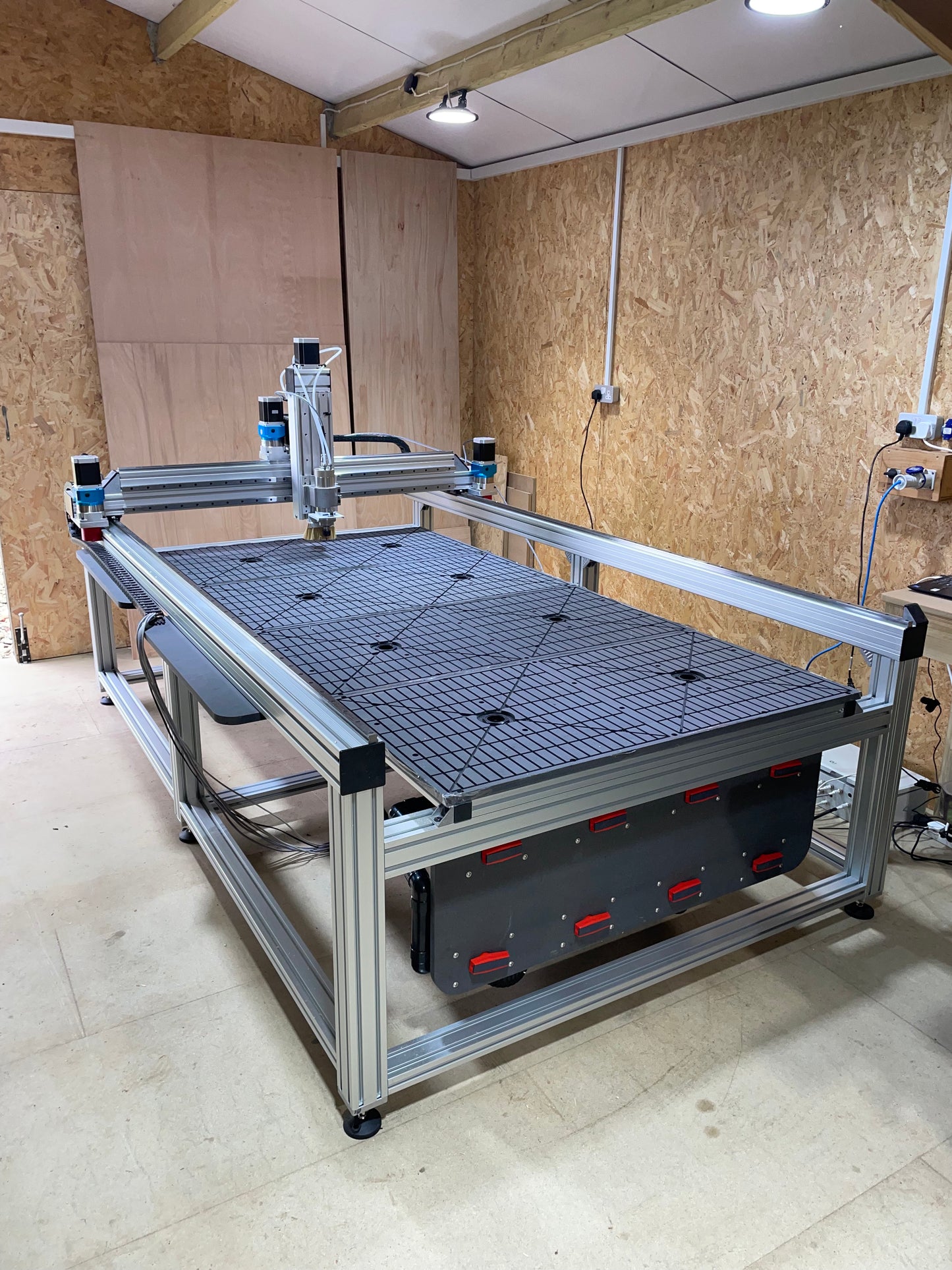

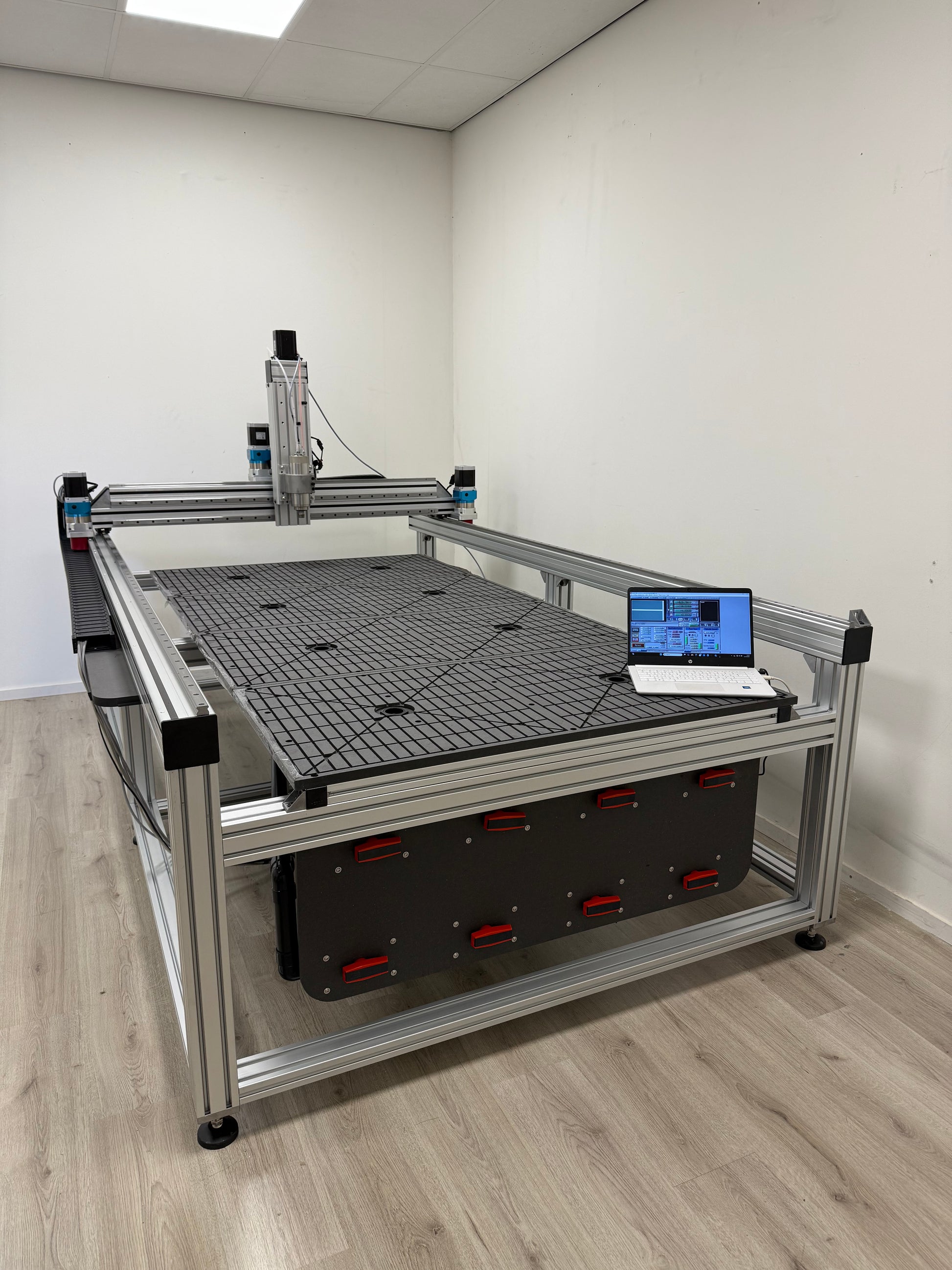

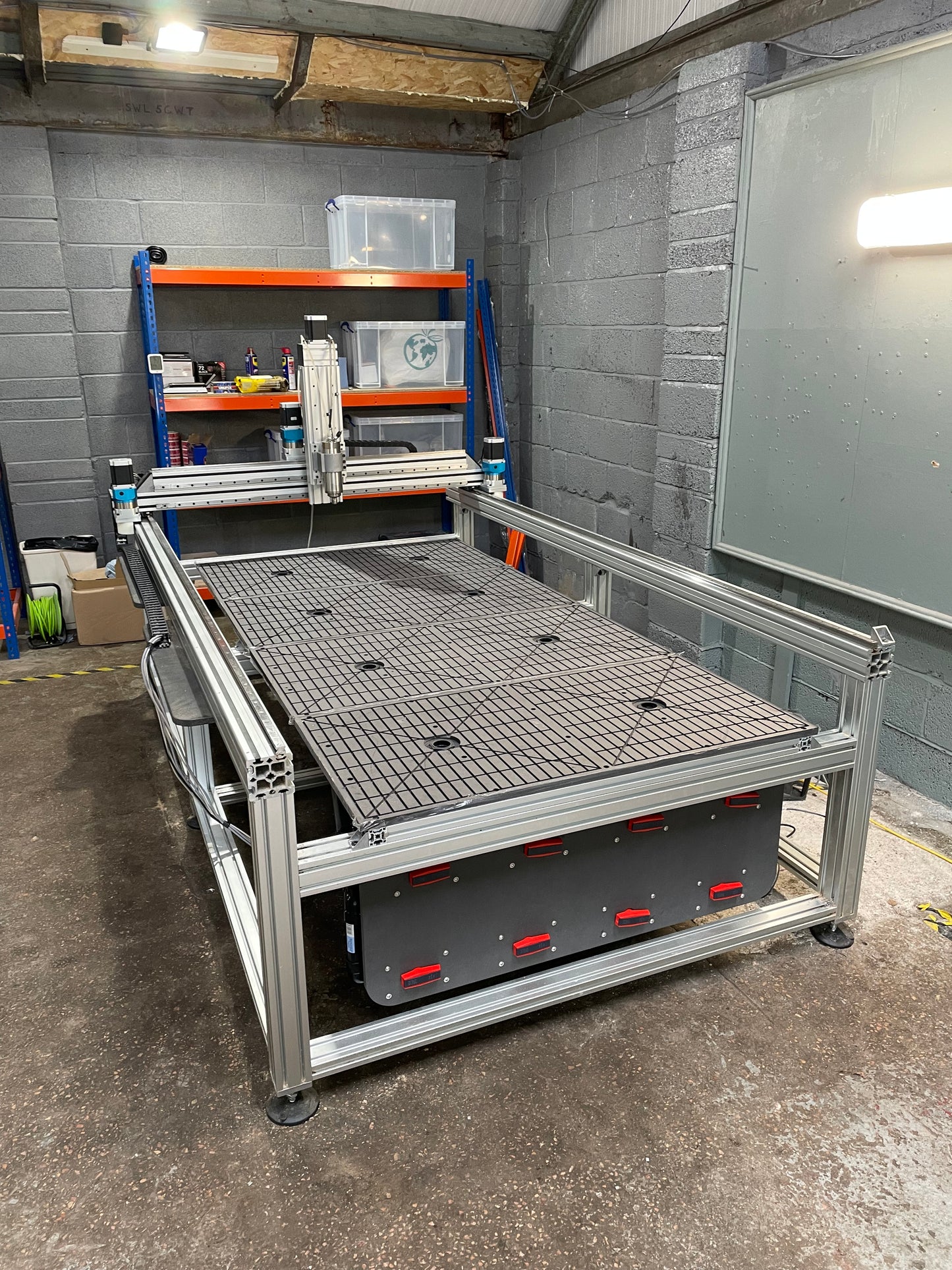

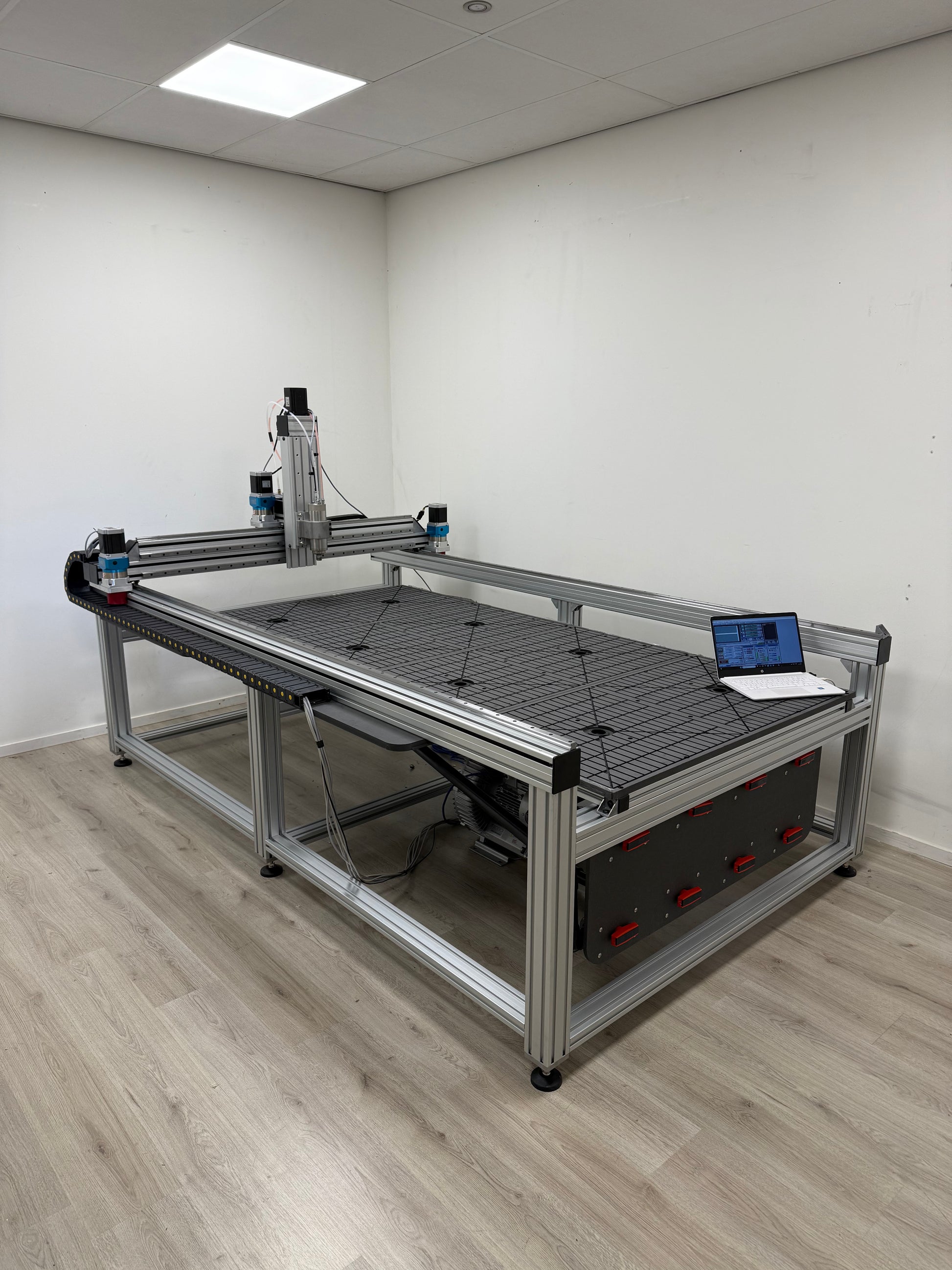

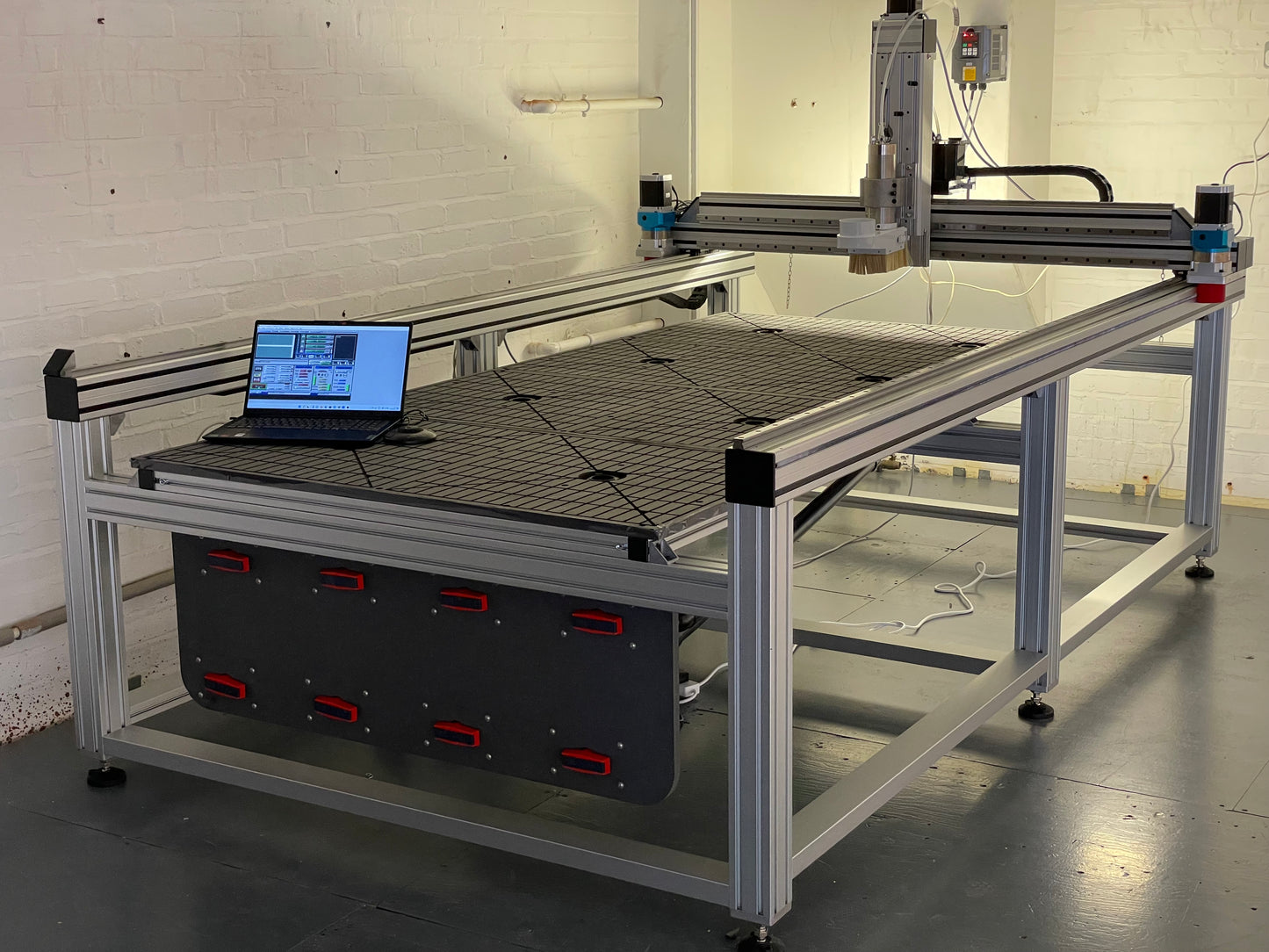

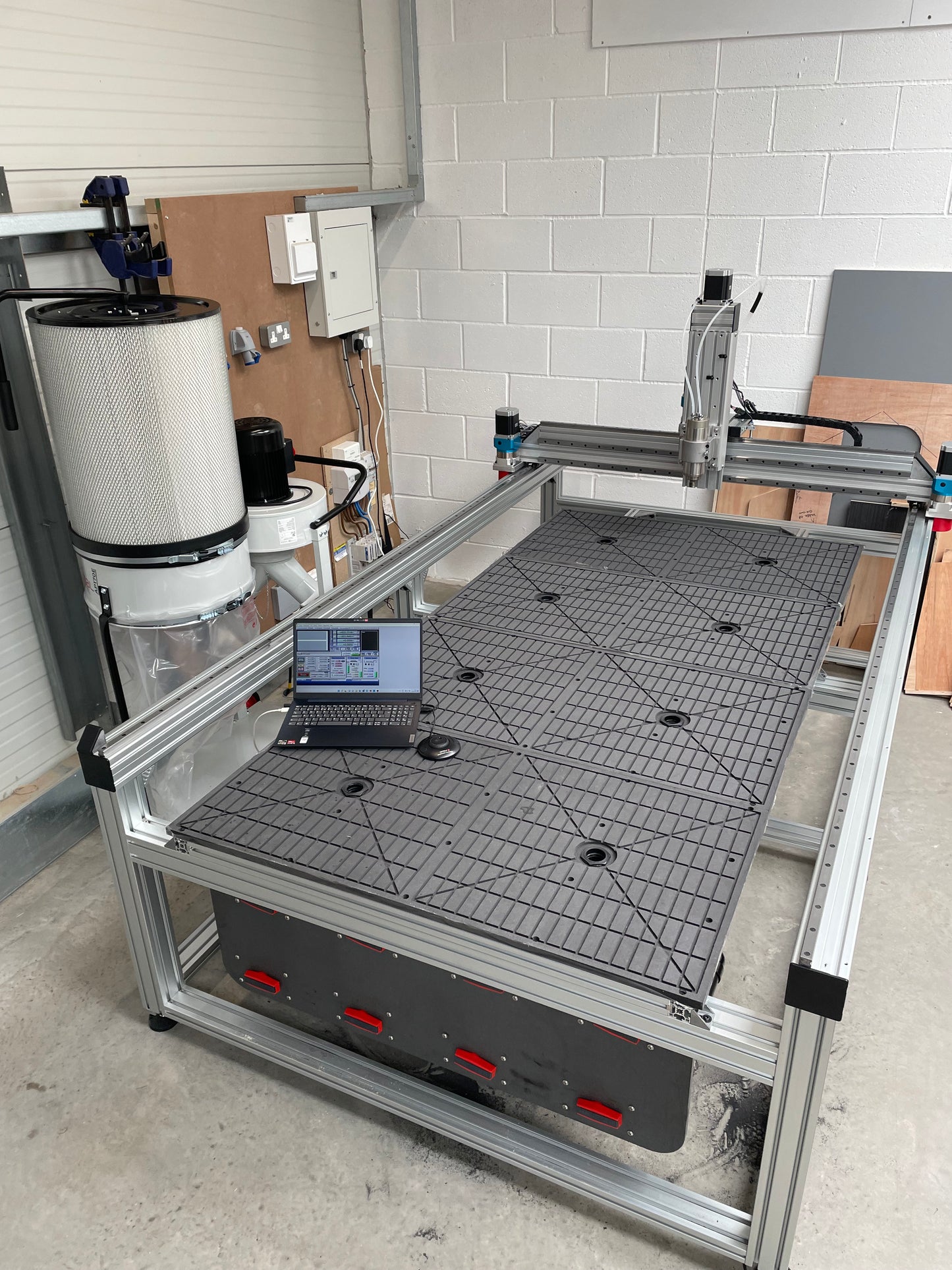

UK-Built 8x4 CNC Router with Vacuum Bed for High-Volume Production
The FS84 Vacuum Bed adds secure, tool-free hold-down to Synergy CNC's 8x4 platform — no clamps, no screws, just even suction across the full 1250x2520mm bed. Built in the UK for workshops running repeat jobs, it's a popular choice for camper van conversion companies, cabinet makers and sign makers who need material held flat and fast between cuts.
Price: £12,750 + VAT (£15,500 inc. VAT)
See It Cutting
Key Features
2.2kW Water Cooled Spindle — powerful, quiet cutting with a long service life.
Vacuum Bed Hold-Down — secure sheet material instantly, no clamping required.
Dedicated CNC Workstation & Controller — a stable, purpose-built control setup.
VCarve Design Software — industry-standard, easy to pick up.

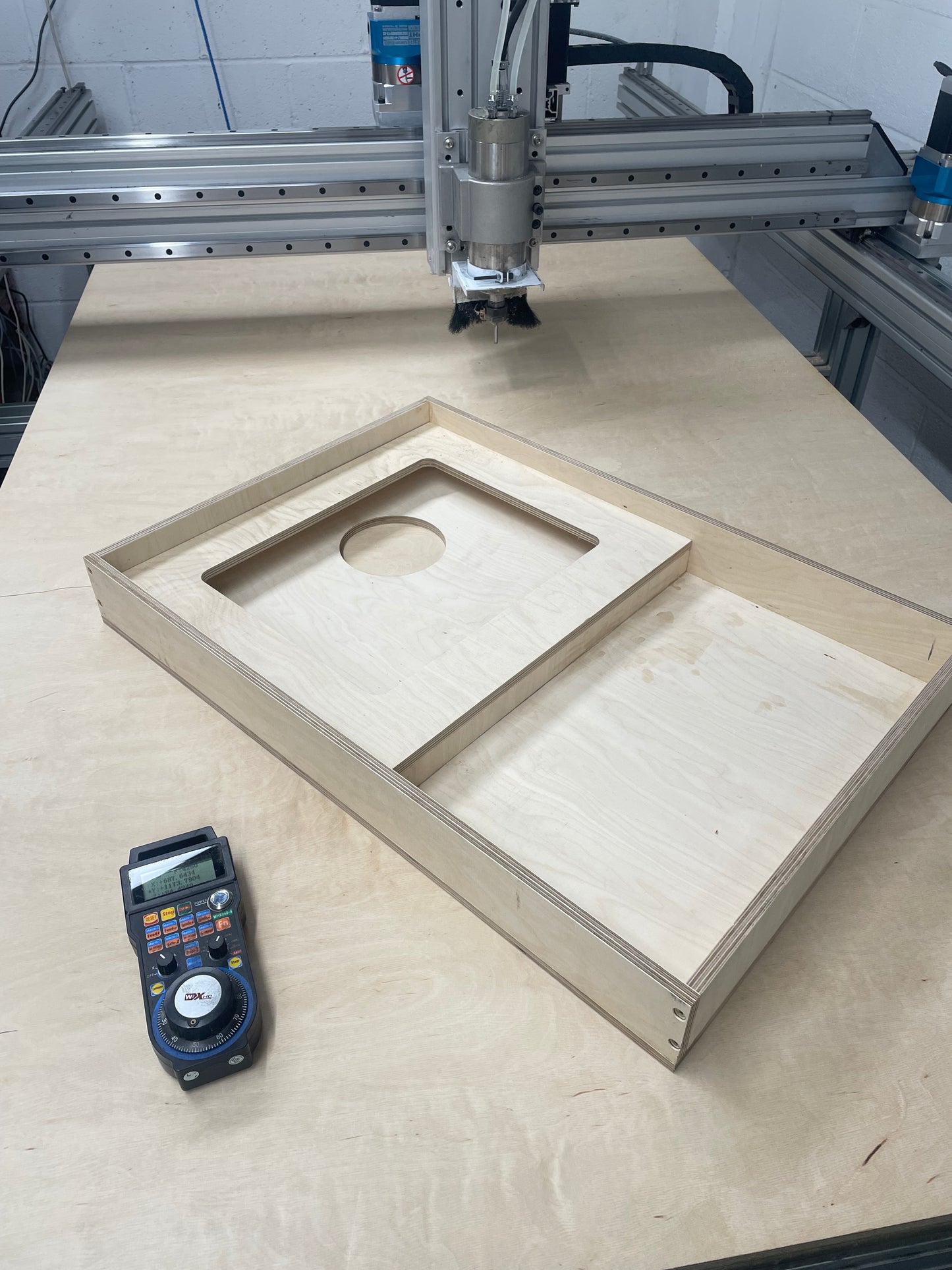

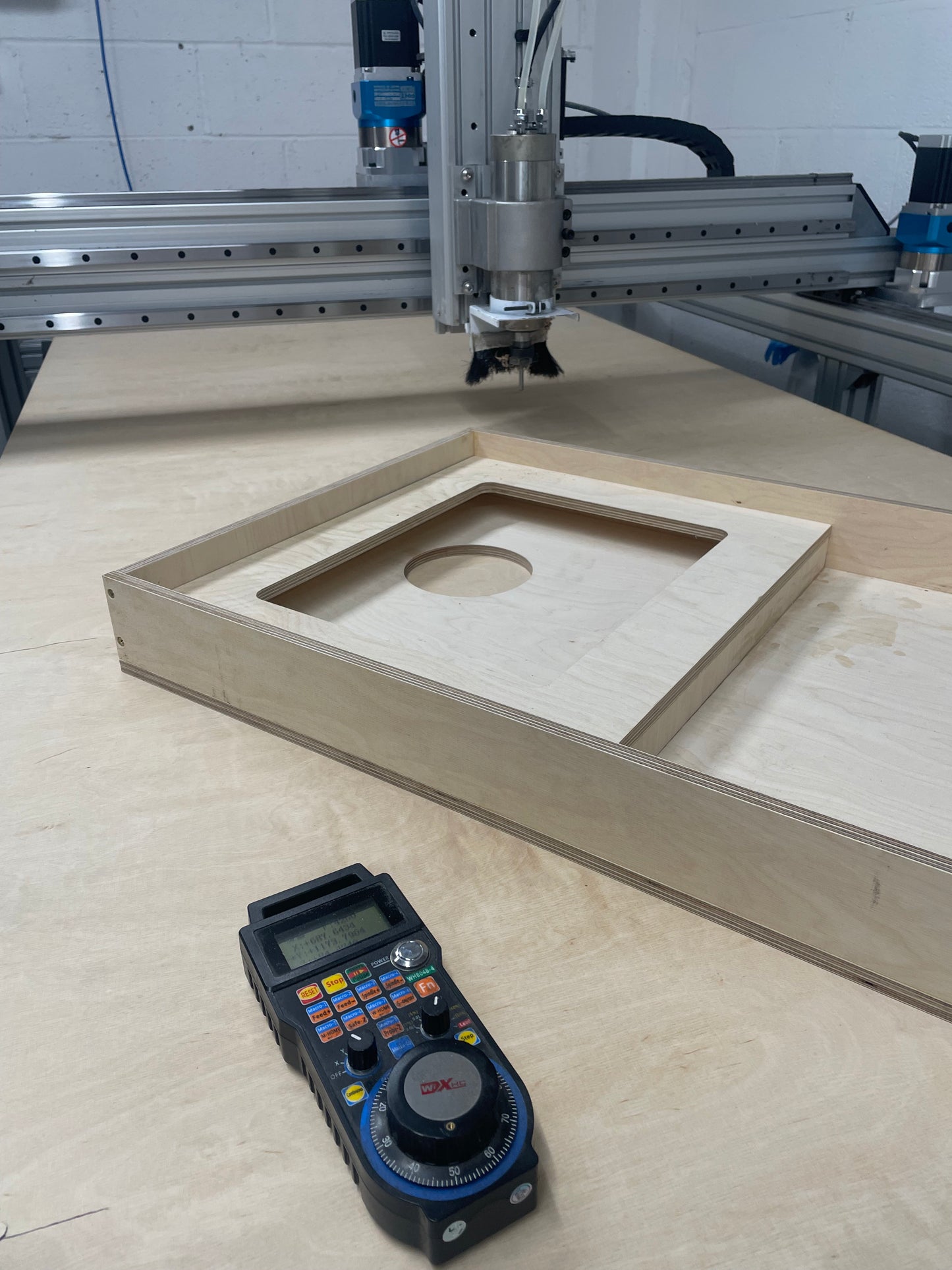

Electronic Jogging Handwheel — precise manual control when you need it.
Sample Cutter Set — start cutting the day it's installed.
Two-Year Parts Warranty — parts only; does not cover labour or call-out charges.
Installation, Training & Lifetime Support — onsite setup and ongoing support for the life of the machine.
Specifications
Working Area: 1250x2520mm
Footprint: 2900x1850mm
Z Stroke: 200mm
Z Drive: Ball Screw
X and Y Drive: Rack and Pinion with 4/1 Ratio Planetary Gearbox
Motors: 8.7Nm NEMA 34
Built for Repeat, High-Volume Work
Camper Conversions: save standard templates and cut a full conversion unit in around 2 hours.
Sign Making: cut wood, plastic, Dibond, stone and metal with a clean, flat hold.
Cabinet Making: produce intricate joinery — dovetails, inlays — with consistent accuracy.
Furniture Making: speed up repetitive production runs.
Shop Fitting: deliver bespoke fit-outs that would be impractical by hand.
Model Making: fine detailing on smaller, precise parts.
Delivery & Installation
Built to order with a lead time of approximately 3–4 weeks. We deliver and install on-site ourselves, calibrate the machine, and train your team on the design and control software.
